To place an order, please contact us via email at . The minimum order quantity for this item is 100 pieces.

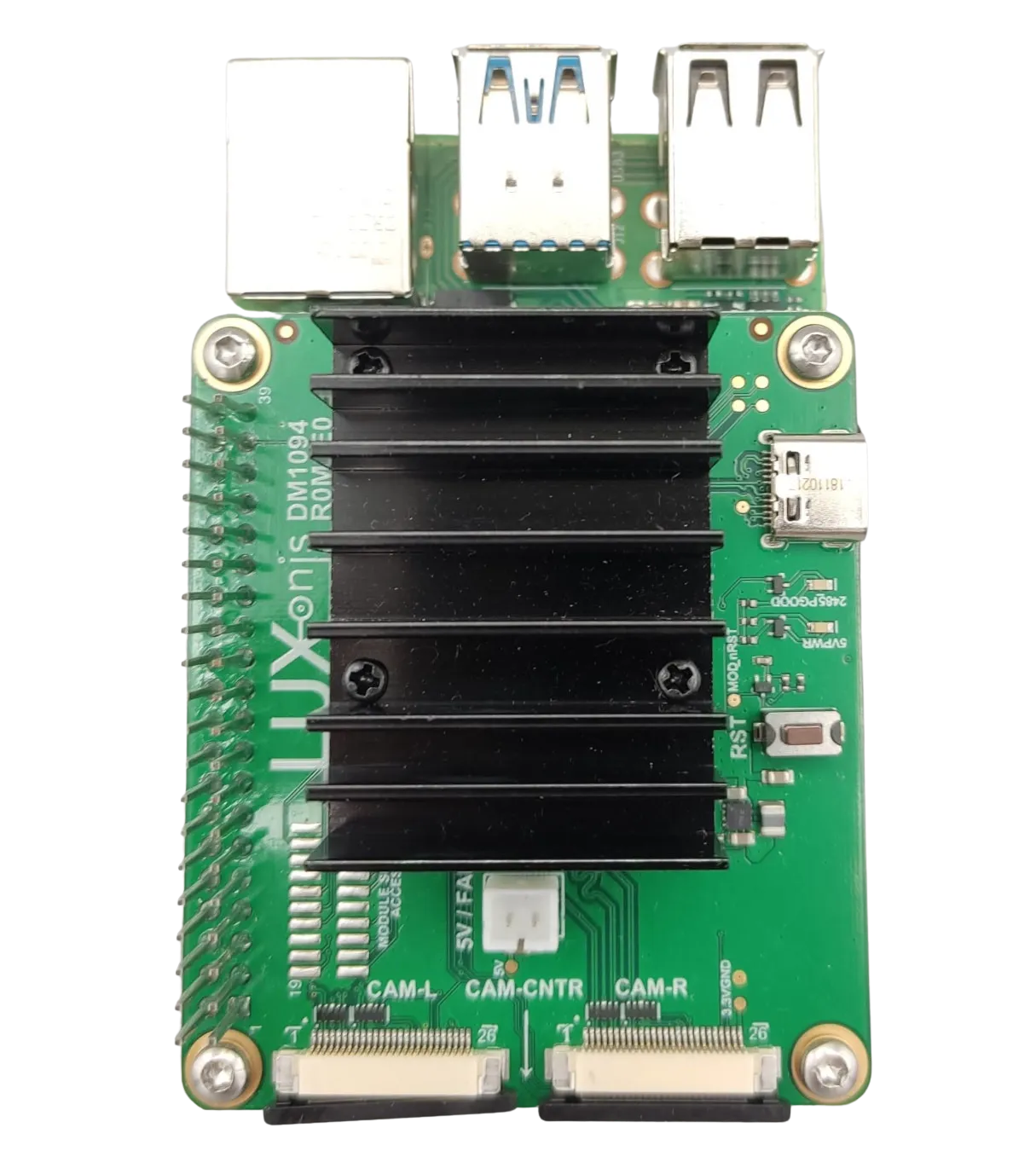

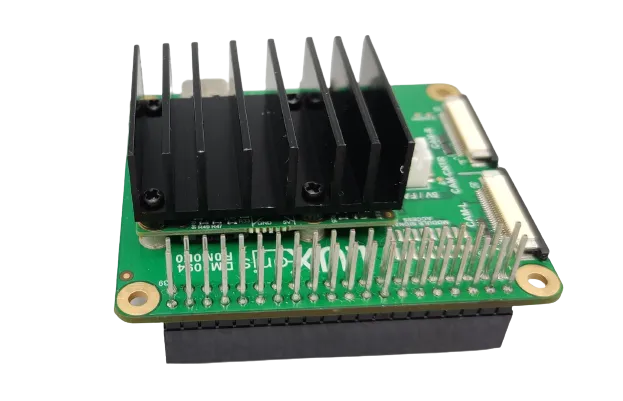

The OAK-FFC RPi Hat is a flexible and powerful prototyping platform that allows you to connect up to 3 that best fit your project requirement in terms of resolution, FPS, FOV, shutter type, and depth of focus. It also features on-device and capabilities.
Key features:
- Up to 3 cameras: two 2-lane MIPI and one 4-lane MIPI
- 4 TOPS of processing power (1.4 TOPS for AI - )
- 5V power input via barrel jack
- USB2 / USB3 for power delivery and communication
Description
Key Features
RVC2 architecture on-board features:- 4 TOPS of processing power (1.4 TOPS for AI - )
- Run any AI model, even custom architected/built ones (models need to )
- Encoding: H.264, H.265, MJPEG - 4K/30FPS, 1080P/60FPS
- Computer vision: warp (undistortion), resize, crop via node, , . You can also
- Stereo depth perception with filtering, , , and high
- Object tracking: 2D and 3D tracking with node

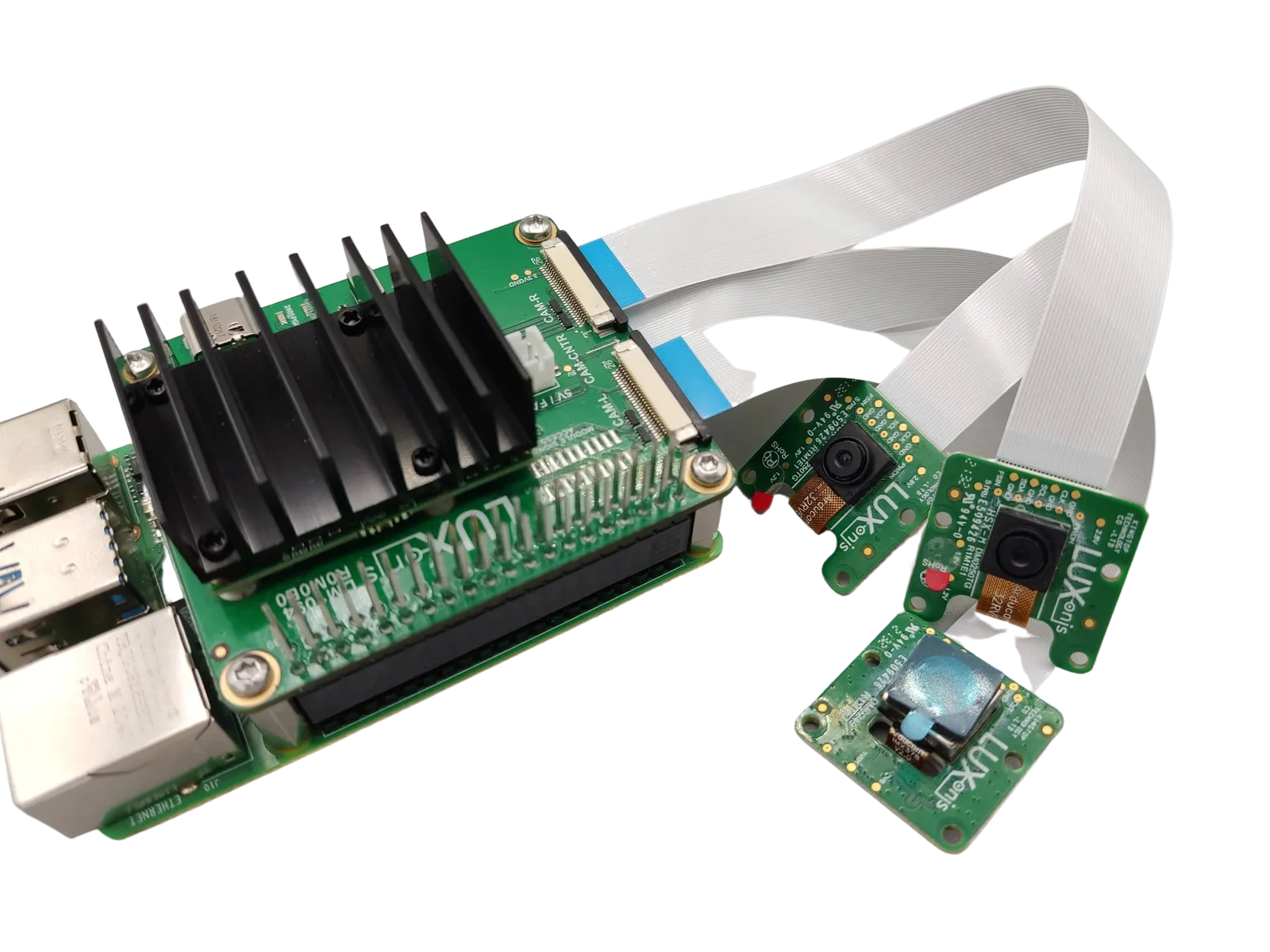

Compatible Camera Modules
Note: Please take note that the manual calibration is needed when the camera modules are connected. Please follow the .
| Sensor | MP | Color/Grayscale | Shutter Type | Focus Type | Wide FOV | DFOV / HFOV / VFOV | M12 Mount |
|---|---|---|---|---|---|---|---|
| 13MP | Color | Rolling | FF: 50 cm - ∞ | - | 117° / 105° / 88° | - | |
| 12MP | Color | Rolling | AF: 10 cm - ∞ | - | 81° / 69° / 55° | - | |
| 12MP | Color | Rolling | FF: 50 cm - ∞ | - | 82° / 69° / 55° | - | |
| 12MP | Color | Rolling | FF: 50 cm - ∞ | Yes | 120° / 108° / 93° | - | |
| 1MP | Grayscale | Global | FF:19.6 cm - ∞ | - | 89° / 80° / 55° | - | |
| 1MP | Grayscale | Global | FF: 20 cm - ∞ | - | HFOV: 75˚ | Yes | |
| 1MP | Grayscale | Global | FF: 19.6cm - ∞ | Yes | 150° / 127° / 79.5° | - | |
| 1MP | Color | Global | FF: 20 - ∞ | - | HFOV: 75° | Yes | |
| 1MP | Color | Global | FF: 19.6 cm - ∞ | Yes | 150° / 127° / 79.5° | - | |
| 12MP | Color | Rolling | AF:10 cm - ∞ | - | HFOV: 75° | Yes | |
| 2.3MP | Color | Global | FF: 45cm - ∞ | - | 100° / 82° / 56° | Yes |
This board is also compatible with RPi camera interface. For that you will need a , which converts 26-pin Luxonis camera pinout to 22 pin RPi camera pinout.
Package Includes
Package contains:
- OAK-FFC RPi Hat baseboard
Note: Camera modules are not included in the packaging. List of available cameras is .
