DESCRIPTION

The Gazelle Medeo T9 City is an active electric bike that takes you everywhere. Specced with the reliable and quiet Bosch Active Line motor and 9-speed external derailleur, every hill will feel as flat as Holland. Powerful front and rear lighting plus a sturdy rear rack will inspire riders to swap their car for this bike for both day and nighttime trips. Enjoy every mile of the ride thanks to a roomy low-step frame, comfortable geometry, and wide tires. The Medeo City is a great value and perfect introduction to e-bike life.

HIGHLIGHTS

• Smooth assistance thanks to a Bosch Active Line motor with 40 Nm of torque (20mph) and 400Wh rack battery
• Premium Shimano disc brakes provide smooth and responsive stopping power
• Active geometry combined with a low-step frame creates a fun and lively experience perfectly suited to urban errands and adventures

SPECS

FRAME/FRONT FORK
• Frame: Stable lightweight aluminium sloping frame with 70,5° headset angle and 73° saddle tube angle for a sporty posture and precise handling. Cables beautifully integrated into the frame.
• Sitting position: Active
• Integrated cables: Yes
• Fork: Suntour NEX E25 HLO 50mm
• Chain guard: Plastic

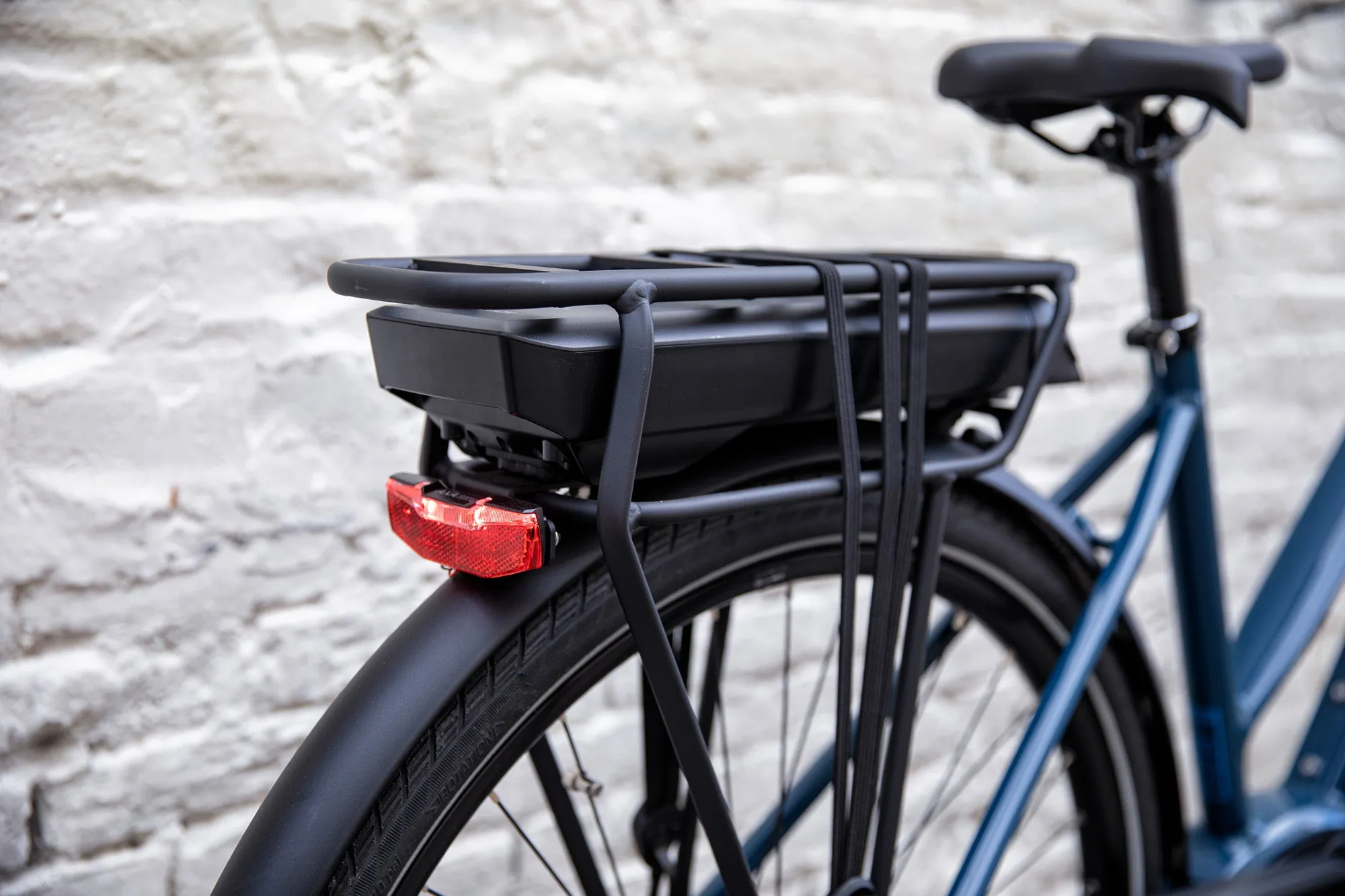

• Rear carrier: Aluminum MIK system carrier

WHEELS/TIRES
• Tires: Schwalbe Big Apple, 50-622
• Tires puncture resistant: Yes
• Rims: Mach1 ER-10, Double-walled aluminium for extra strong and efficient cycling performance
• Front hub: Shimano
• Spokes: Stainless steel, extra strong
• Fender: Aluminum

STEERING
• Handlebar: Aluminium, slightly curved model
• Stem: Steplessly adjustable
• Steer grip: Plastic wear-resistant handlebar grips for a firm grasp
• Grip type: Herrmans DD36
• Brake lever: Shimano BR-MT200
• Bell: Gazelle Compact bell

TRANSMISSION/BRAKE
• Gear system: Shimano Alivio, 9-speed
• Brake system back: Disc brake with hydraulic control; Shimano BL-MT200, 2 piston 160 mm
• Brake system front: disc brake with hydraulic control; Shimano BR-MT200, 2 piston 180 mm
• Derailleur rear: Shimano Alivio
• Shifter: Shimano Acera
• Front chainwheel: 38

GAZELLE MEDEO T9 CITY HMB
• Rear chainwheel: 11-36
• Drivetrain: Chain
• Chain: KMC extra strong, special for e-bike

SADDLE
• Seatpost: Fixed
• Saddle: DDK, sportive

LIGHTING

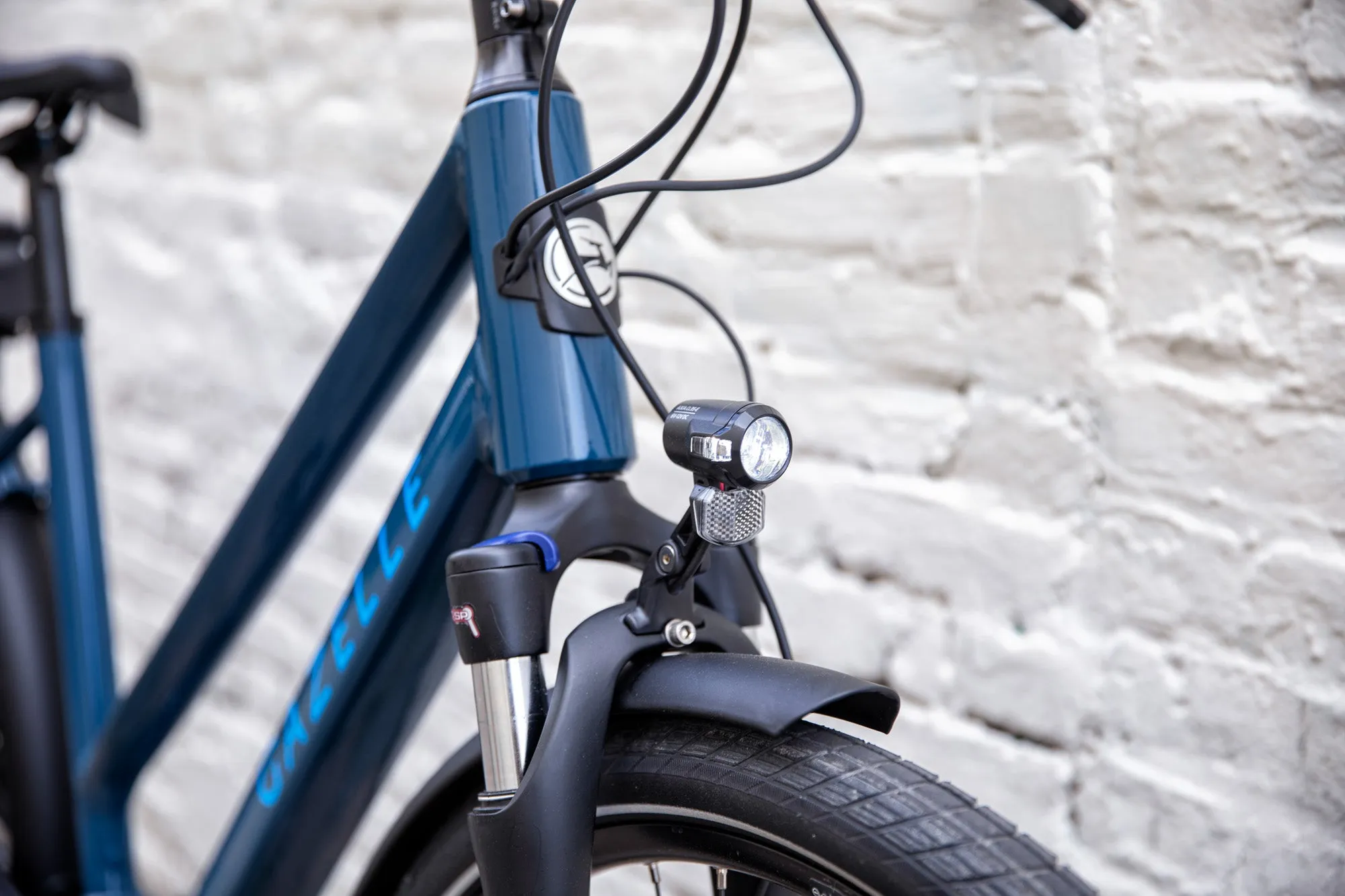

• Lights front: Axa Compactline 35, LED headlamp, on/off
switching via display
• Front light lux: 35
• Front light powersource: Battery
• Light back: Axa Blueline, LED battery supply, on/off switching
via display
• Rear light powersource: Battery

SYSTEM
• Display: Bosch Purion LCD
• Display detachable: No
• Sensors: rotation sensor; speed sensor; pedal force sensor

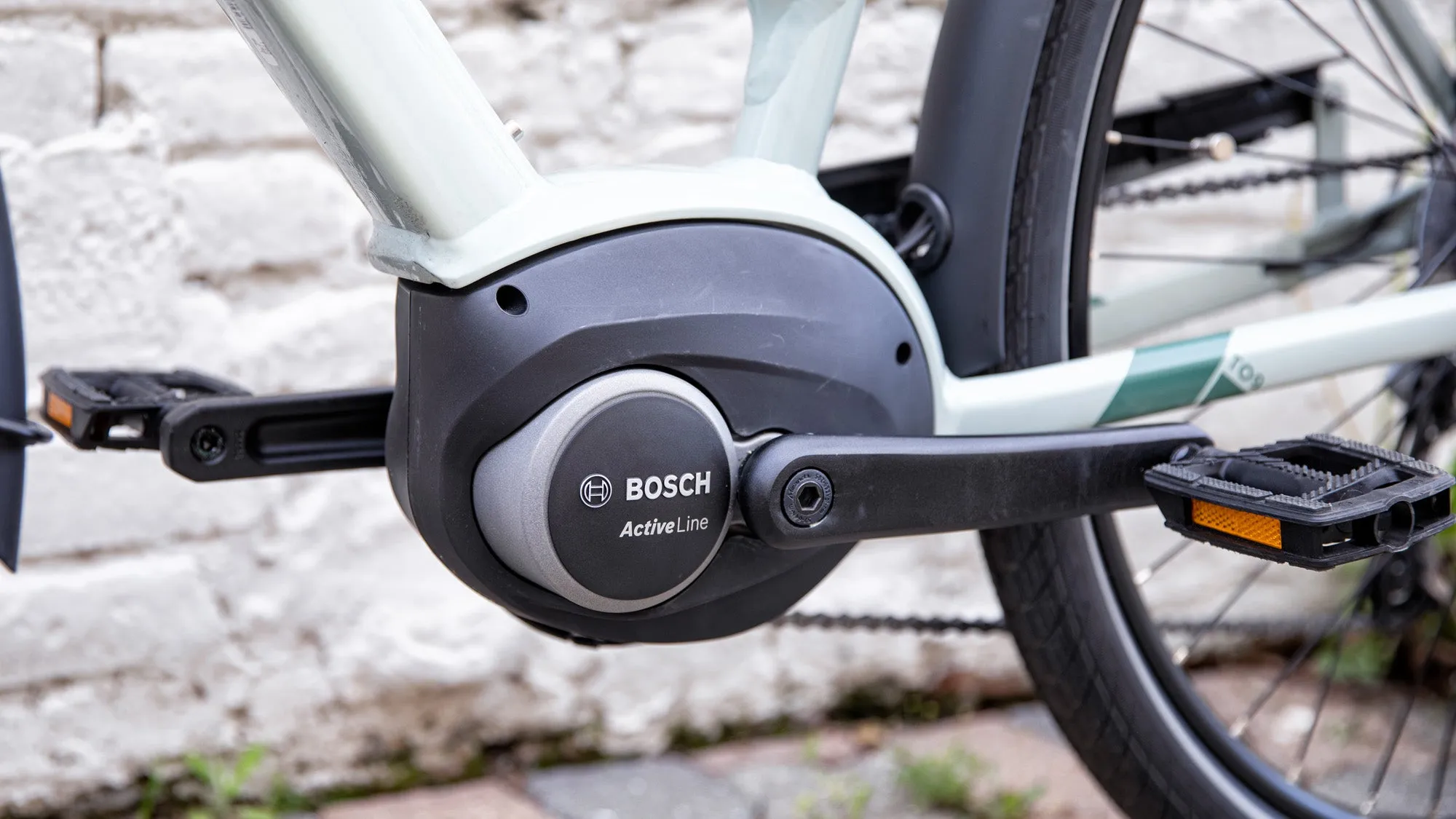

• Engine: Bosch Active Line 3.0 (40Nm), 36V
• Battery: Low-step: Integrated into carrier
• Charger: 2 Ah

OTHER
• Kickstand: drop-down rear stand, Ursus Mooi

• Weight: 47.2 lbs (EXCL. BATTERY)

SIZE

To best determine your frame size, please visit us! Gazelle bikes are tested and approved for riders up to 130Kg or about 285 pounds. Rear racks are tested and approved up to 55 pounds of cargo, unless noted differently.
