Product Details
＋

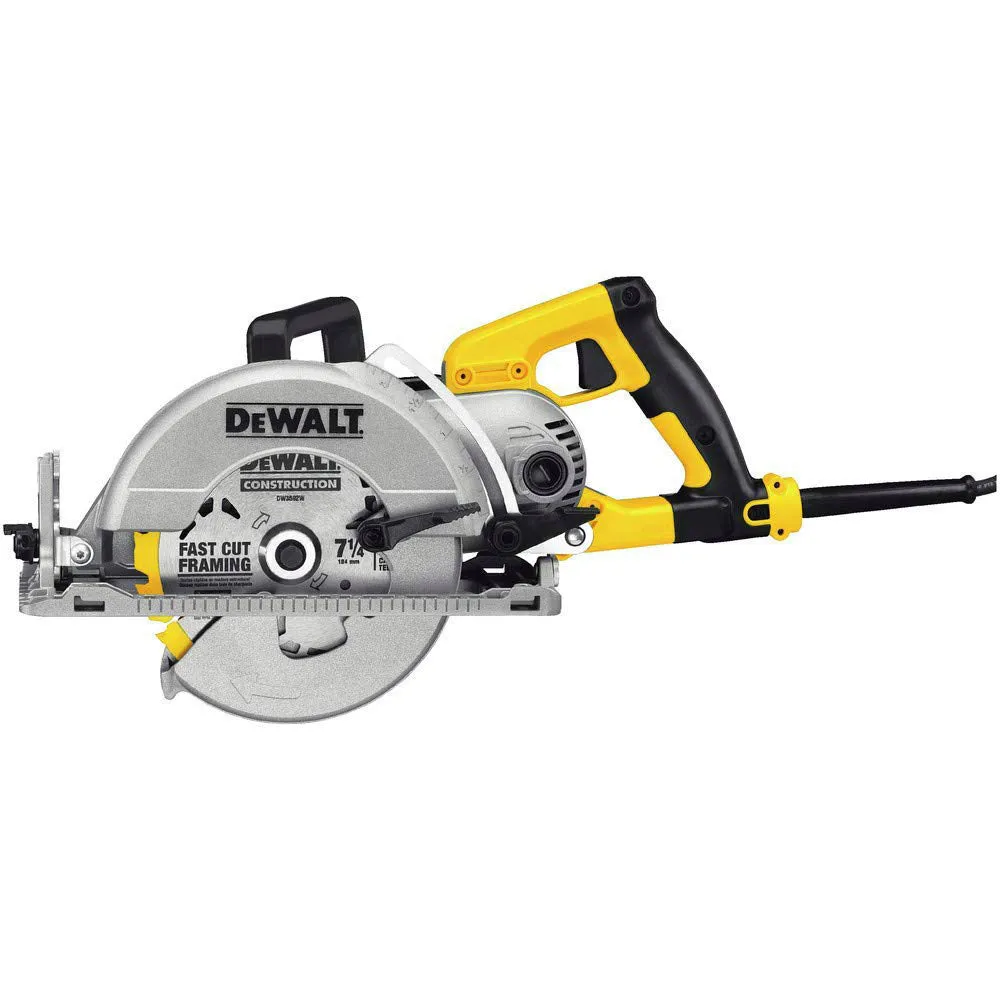

DeWalt DWS535B Description
The DWS535 7-1/4 In. worm drive circular saw has a 15 Amp motor that delivers 4,800 rpm and features 53-degree bevel capacity for advanced applications. Lightweight and durable magnesium construction for optimum user handling, comfort, and strength includes electric brake which stops blade after the trigger is released.
DeWalt DWS535B Features
- Lightweight magnesium and aluminum construction including durable magnesium footplate
- Accepts DWS5100 dual port rip guide (Sold separately)
- Extra wide saw hook accepts materials up to 2-3/4 In. wide
- Toughcord cord protection with 4X Better Cord-jerk Protection
- 53 Degree bevel with stops at 22.5 and 45
- 53 degree bevel capacity for advanced applications
- Bevel detents at 22.5 degrees and 45 degrees for fast and accurate setting to common angles
- Dual rip ports to accept available DWS5100 12-in dual port rip guide
- Top-accessible spindle lock enables easier and faster blade changing
- Electric brake stops blade after trigger is released
DeWalt DWS535B Specifications
| Arbor Size (in) | 0.625 |
| Bevel Capacity (°) | 53 |
| Blade Location | Left |
| Blade Wrench Included | Yes - Loose |
| Blades Included | 1 |
| Cord Length (in) | 8 |
| Cordless / Corded | Corded |
| Length (in) | 8 |
| Maximum RPM - No Load | 4800 |
| Assembled Weight (lbs) | 13.8 |
| Net Tool Weight (lbs) | 13.8 |
| Powered Tool Power Source | Electric - Corded |
| Saw Blade Diameter (in) | 7¼ in |
| Saw Drive | Worm Drive Geared |
| Saw Type | Circular Saw |
